Street Maths
Have you ever been torn between art and maths?
Start your journey into Maths Art with our step-by-step designs.
Have a try on paper, blank or squared sheet.
Let’s brighten up the street, the playground, using chalks. And make an ephemeral piece of art!
Tag us on social media and let us know of your artworks.
#MathsArt #StreetMaths

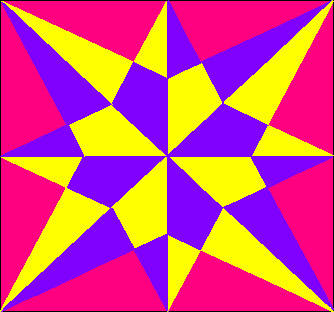

Design #1: Star
Press the pencil gently enough to make a mark. To be able to erase some parts at the end.

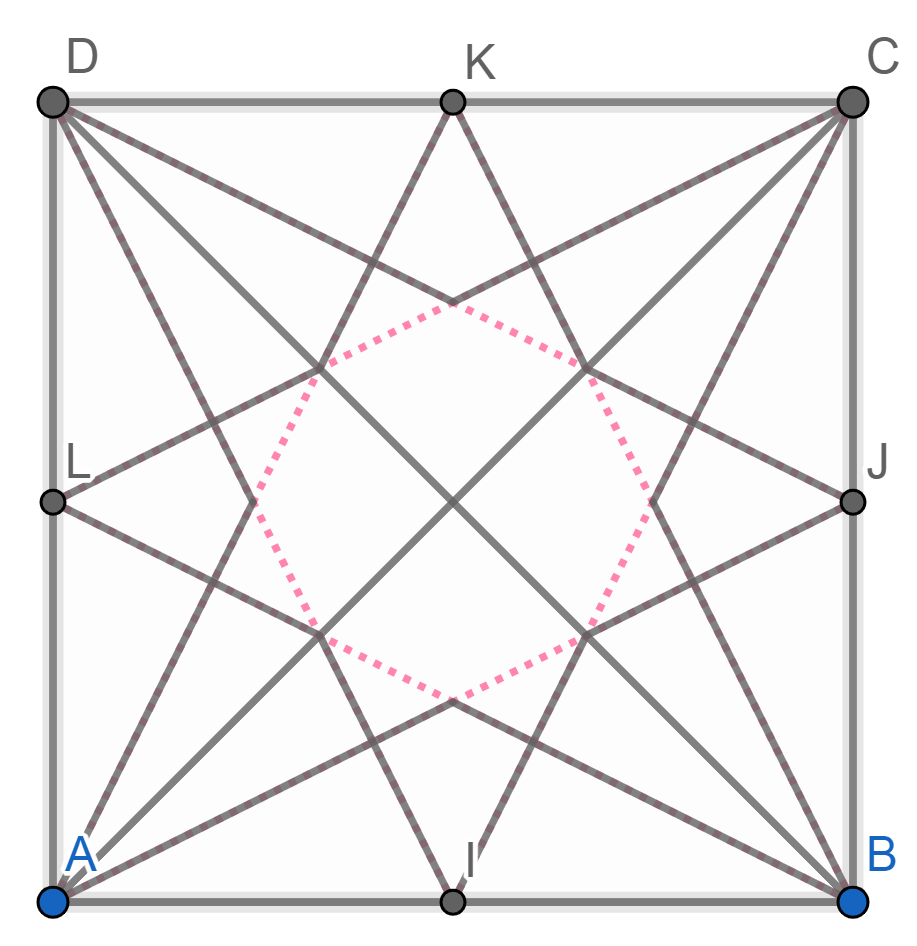

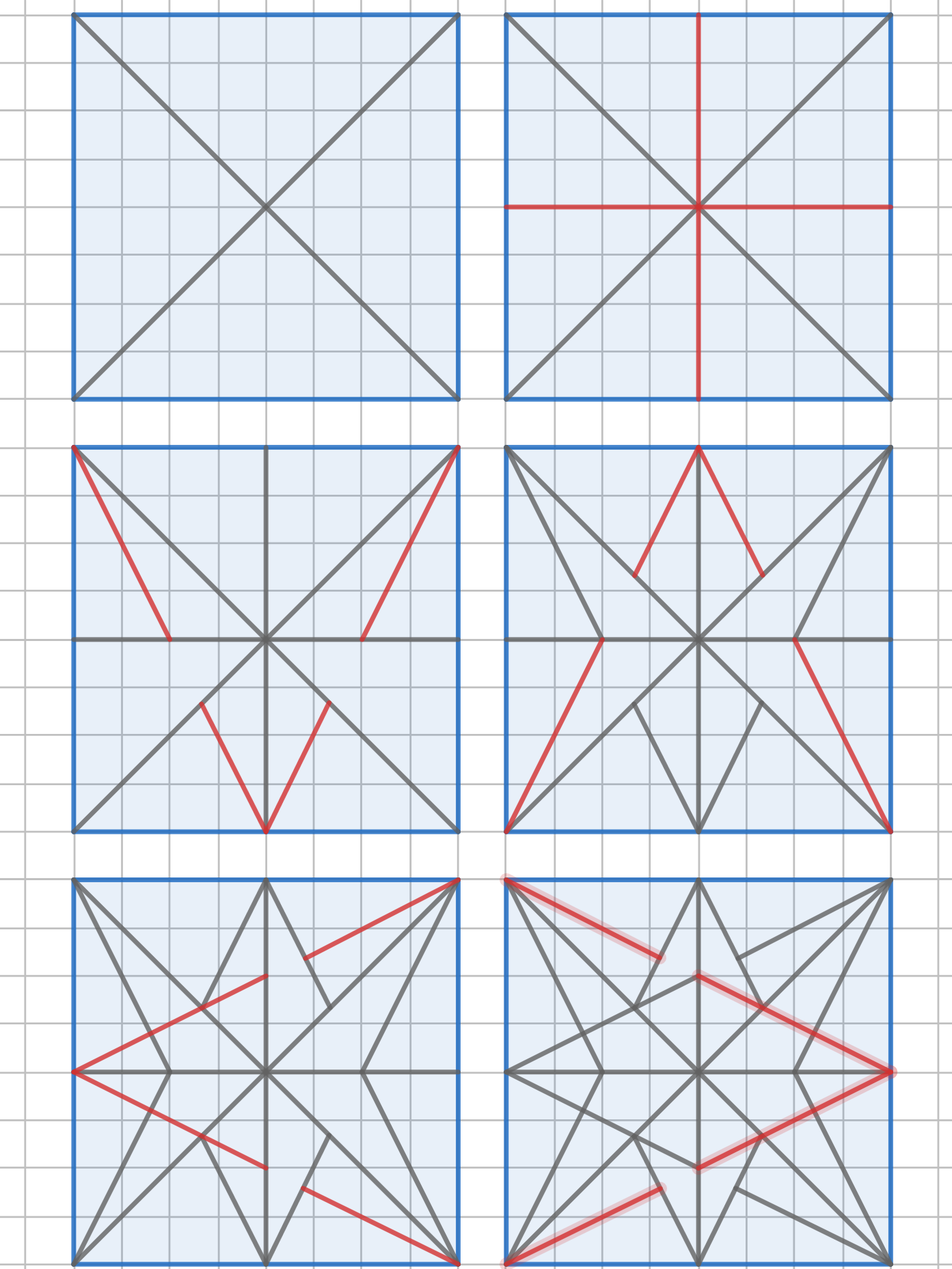

- Built a square ABCD of side 12 cm.
- In the middle of the line segment:
- [AB] is I.
- [BC] is J.
- [CD] is K.
- [AD] is L.
- Draw the line segment [AJ], [AK], [AC], [BL], [BK], [BD], [CI], [CL], [DJ], [DI], [IK] and [JL].
- Erase the redish broken lines.
- Choose 3 colours and let’s paint!
From the book La géométrie pour le plaisir – J. & L. DENIERE

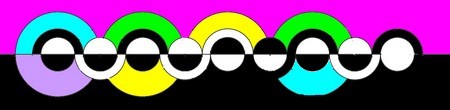

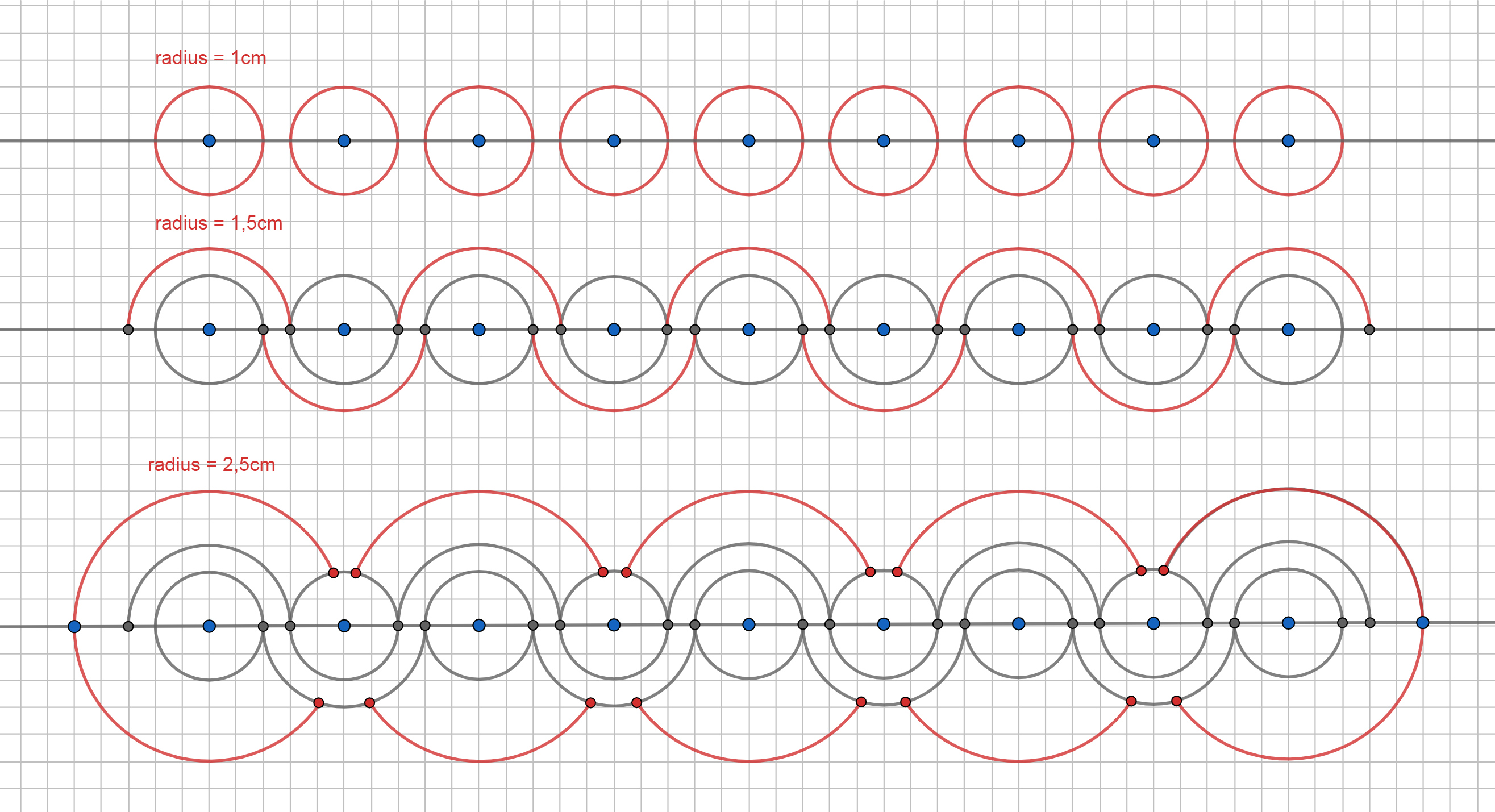

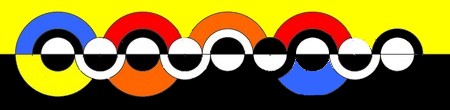

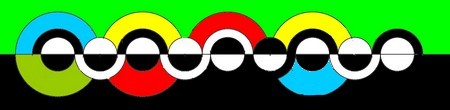

Design #2: Rhythm & Colours
From a painting of Robert Delaunay (1885 – 1941) showcased at Pompidou Centre (in Paris) Rythme sans fin – Infinite Rhythm, 1934.
An idea of mathsenboite

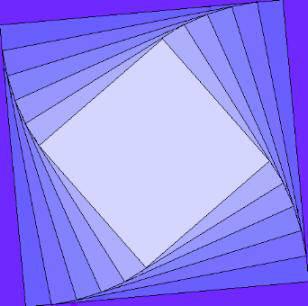

Design #3: Infinite Squares
-

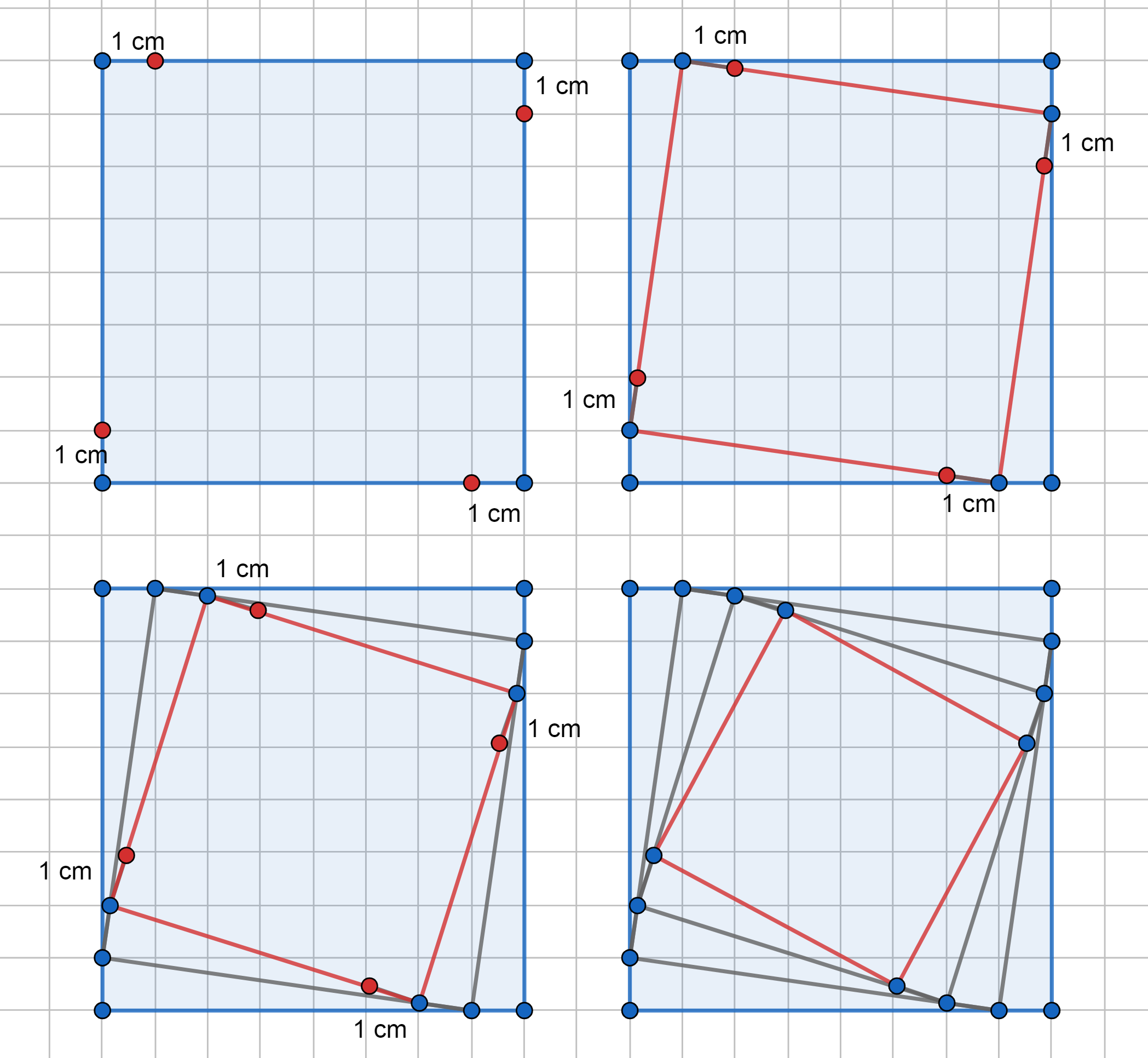

Built a square ABCD of side 10 cm.
-
Locate:
-
the point a on the side [AB] such that Aa=1cm.
-
the point b on the side [BC] such that Bb=1cm.
-
the point c on the side [CD] such that Cc=1cm.
-
the point d on the side [AD] such that Dd=1cm.
-
-
Join [AB], [BC], [CD] and [AD].
-
Locate:
-
the point e on the side [ab] such that ae=1cm.
-
the point f on the side [bc] such that bf=1cm.
-
the point g on the side [cd] such that cg=1cm.
-
the point h on the side [ad] such that dh=1cm.
-
-
Join [ef], [fg], [gh] and [he].
-
Do the same for the other squares mnpq, EFGH, MNPQ and urst (see other pictures).
-
Choose a gradation of some colour or just 2 colours and let’s paint!
Have fun! Try to change the gap (1/2 inch; 1 inch; 0,5 cm; 2 cm…). Try to change the direction of the rotation.

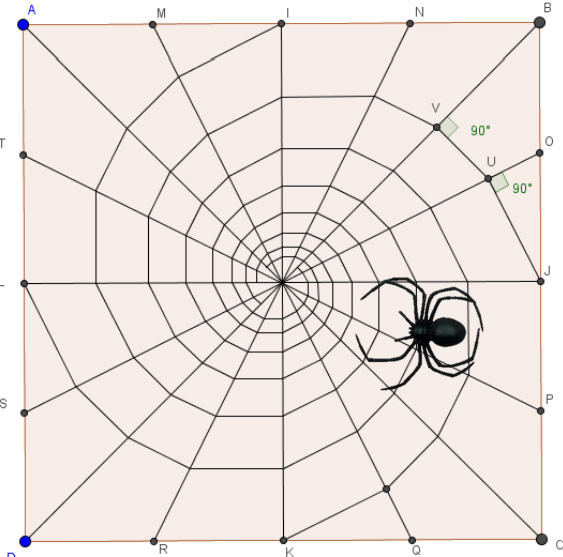

Design Halloween: Spider Web
